Building Information Modeling (BIM) has become an essential part of modern construction, helping owners, contractors, architects, engineers, and subcontractors coordinate project information more effectively.
However, not every BIM model contains the same level of information. This is where BIM Level of Development (LOD) becomes important.
BIM LOD 100 to 500 provides a framework for understanding how developed a model element is and what it can be reliably used for. From conceptual planning to detailed fabrication and field-verified information, each LOD serves a different project requirement.
For contractors and owners, understanding LOD helps establish clear BIM deliverables, avoid unnecessary modeling effort, and ensure that the model is suitable for its intended purpose.
What Is BIM LOD?
LOD stands for Level of Development.
It describes the degree to which a BIM model element has been developed and the reliability of the information represented by that element.

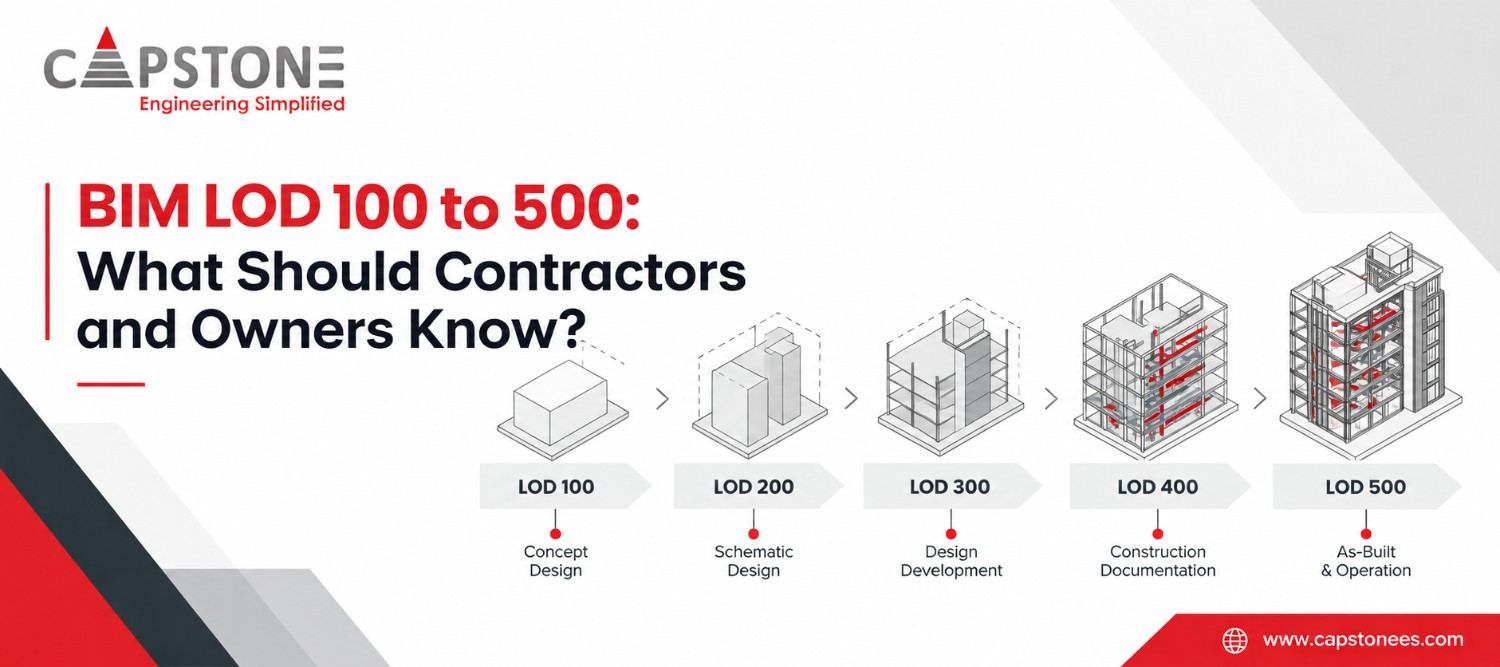

The commonly used BIM LOD levels are:
- LOD 100: Conceptual
- LOD 200: Approximate
- LOD 300: Design-specific
- LOD 350: Construction coordination
- LOD 400: Fabrication and installation
- LOD 500: Field-verified
Importantly, higher LOD does not automatically mean better BIM. The appropriate LOD depends on the project stage, model element, intended use, and contractual requirements.
BIM LOD 100: Conceptual Model
LOD 100 represents the earliest stage of BIM development.
At this stage, the model may show basic building massing, approximate areas, volumes, orientation, or other conceptual information.
Typical applications include:
- Concept design
- Feasibility studies
- Early planning
- Preliminary cost discussions
- Building massing
- Design option evaluation
For owners, LOD 100 helps communicate the overall project concept. Contractors can use it to understand the general scale and scope of a proposed project.
BIM LOD 200: Approximate Design
LOD 200 introduces more recognizable building elements, but their dimensions, locations, and other characteristics may still be approximate.
It is commonly used during schematic or preliminary design.
Typical applications include:
- Preliminary design coordination
- Space planning
- Early quantity assessment
- System planning
- Design development
For example, an HVAC system may be represented using generic equipment and approximate ductwork rather than detailed fabrication information.
BIM LOD 300: Design-Accurate BIM
LOD 300 represents a more developed design model. Elements have sufficient information to communicate their design intent and support measurement of characteristics such as size, shape, location, and orientation.
LOD 300 is commonly used for:
- Detailed design
- Construction documentation
- Design coordination
- Quantity take-offs
- Engineering coordination
- Project visualization
For owners, LOD 300 provides a clearer representation of the proposed design. Contractors can use it to review design information and prepare for subsequent construction activities.
For professional BIM modeling services, LOD 300 is often an important stage for multidisciplinary project coordination.
Internal Link: BIM Services
BIM LOD 350: Construction Coordination
LOD 350 adds information that helps project teams coordinate elements with adjacent and dependent systems.
This is particularly important in complex construction projects where architectural, structural, MEP, and specialist systems must fit within the same space.
LOD 350 can support:
- Clash detection
- Multidiscipline coordination
- MEP coordination
- Construction planning
- Equipment interfaces
- Installation planning
- Trade coordination
For contractors, this level can be valuable when identifying conflicts before installation begins.
Internal Link: MEP BIM Services
BIM LOD 400: Fabrication and Installation
LOD 400 is associated with detailed fabrication, assembly, and installation information.
It is particularly relevant to contractors, specialist subcontractors, and fabricators who require more detailed model information.
Typical applications include:
- Fabrication
- Shop drawings
- Prefabrication
- Installation planning
- Detailed construction coordination
- Spool drawings
- Fabrication-level detailing
For example, an MEP fabrication model may include detailed ductwork, piping, equipment connections, supports, and installation requirements.
However, LOD 400 requirements should always be defined according to the specific project and fabrication workflow.
BIM LOD 500: Field-Verified Information
LOD 500 is associated with field-verified information and as-constructed conditions.
It can support:
- As-built documentation
- Facility management
- Asset information
- Renovation planning
- Existing-condition documentation
- Building operations
Unlike LOD 100 through 400, LOD 500 should not simply be considered the next step of adding more design detail. Its key characteristic is the verification of the represented conditions.
Internal Link: Scan to BIM Services
BIM LOD 100 vs 200 vs 300 vs 350 vs 400 vs 500
| LOD |
Main Purpose |
Typical Use |
| LOD 100 |
Conceptual |
Planning and feasibility |
| LOD 200 |
Approximate |
Schematic design |
| LOD 300 |
Design-specific |
Detailed design |
| LOD 350 |
Coordination |
Construction coordination |
| LOD 400 |
Fabrication |
Fabrication and installation |
| LOD 500 |
Verified |
As-built and facility information |
Why BIM LOD Matters to Contractors and Owners
For Contractors
Clearly defined LOD requirements can help contractors understand:
- What information is available
- Whether the model is suitable for coordination
- Whether fabrication information is included
- What level of detailing is expected
- Who is responsible for model development
Appropriately coordinated BIM models can also help identify potential conflicts before they reach the construction site.
For Owners
Owners can use LOD requirements to establish clear BIM deliverables and avoid requesting unnecessary levels of modeling.
LOD requirements can also help define what information should be available at different project milestones and what information may be required during handover.
Do All BIM Elements Need the Same LOD?
No.
Different elements can have different LOD requirements within the same project.
For example:
- Architectural elements may require LOD 300.
- Structural elements may require LOD 300.
- MEP coordination elements may require LOD 350.
- Fabricated components may require LOD 400.
- Existing or field-verified elements may require LOD 500.
The right LOD depends on the project phase, element, intended use, and contractual requirements.
Common BIM LOD Mistakes
Contractors and owners should avoid several common mistakes:
- Assuming the highest LOD is always necessary.
- Treating LOD 200 information as construction-ready.
- Assuming LOD 300 automatically means fabrication-ready.
- Treating LOD 500 simply as a higher version of LOD 400.
- Applying one LOD requirement to every model element.
- Failing to define responsibilities and deliverables.
- Not connecting LOD requirements with the BIM Execution Plan.
A clear BIM strategy should define what information is required, when it is required, and how it will be used.
Conclusion
BIM LOD 100 to 500 provides a structured way to communicate the development and intended use of BIM model information.
For owners, clearly defined LOD requirements can help establish realistic BIM deliverables. For contractors, they can clarify whether a model is intended for design coordination, construction coordination, fabrication, installation, or handover.
The goal should not simply be to achieve the highest possible LOD. Instead, project teams should select the appropriate LOD for each model element and intended use.
With the right BIM strategy, modeling, coordination, fabrication, and as-built workflows can work together to provide more useful digital information throughout the project lifecycle.
